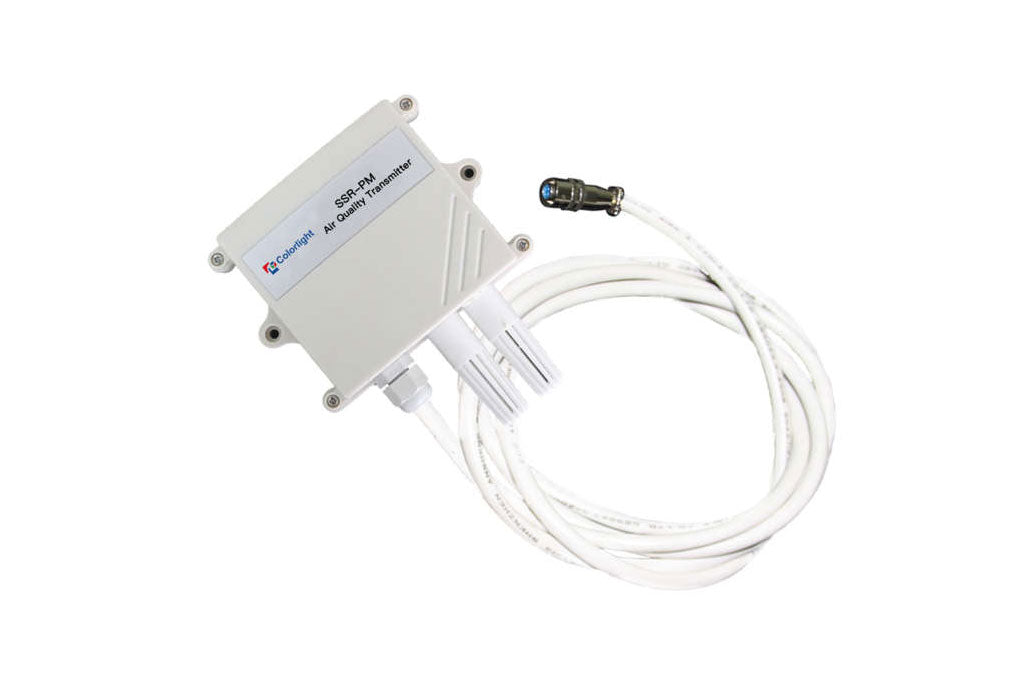

Colorlight LED display accessories SSR-PM air quality (PM2.5/PM10) transmitter

Description Colorlight SSR-PM Air quality (PM2.5/PM10) Transmitter SSR-PM is an industrial transmitter universal particle concentration, measured using laser light scattering principle, the unique data acquisition technology dual sieved particles obtained number of particles per unit volume equivalent particle diameter, and a unique scientific the algorithm calculates the concentration of particulate matter per unit volume equivalent particle diameter, and is output via data interface 485 ModBus-RTU protocol. It can be used for monitoring the concentration of PM10 or PM2.5 need a place outdoor weather, dust monitoring, libraries, archives, and other industrial plants. Range: 0-6000ug/m3, the resolution: 1ug/m3; PM2.5, PM10 simultaneous output; Unique dual automatic data acquisition and calibration techniques, consistency of up to ±10%; The use of advanced laser anti-attenuation technology to ensure long-term stability of equipment; ModBus-RTU standard communication protocol, easy access; Standard wire length: 5 meter. Specification Power supply AC 100~240V  50/60Hz Power Adapter DC12V  2A Circuit operating temperature -20℃~ 60℃， 0%RH~80%RH Communication interface 485 (modbus) protocol   Baud Rate: 2400, 4800 (default), 9600 Parameter settings Be configured with software provided by the configuration 485 Resolution 1ug/m3 Accuracy ±10% Baud rate 1200 bit/s,2400 bit/s, 4800 bit/s, 9600 bit/s, 19200 bit/s Measuring range PM2.5：0~6000ug/m3                PM10：0~6000ug/m3 Response speed ≤90S Warm up time ≤2min
